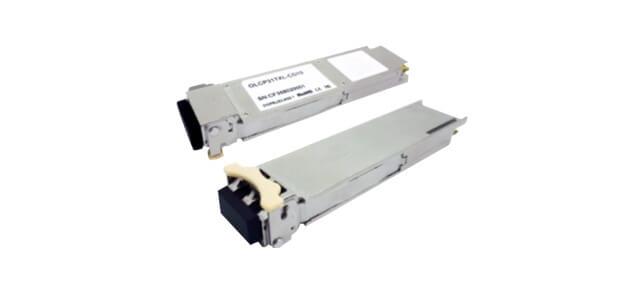

QSFP+ 40G to 10G

首页 / 产品方案 / QSFP+ 40G to 10G
  • Product Features

    • Supports 1.06 to 10.5Gb/s bit rates per Channel

    • LC optical connector

    • Single +3.3V power supply

    • Hot-pluggable QSFP+ MSA form factor

    • Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

    • 10.7G Electrical Serial Interface

    • AC coupling of CML signals

    • Low power consumption,<0.8W

    • Built in digital diagnostic function

    • Operating case temperature range:0℃ to 70℃

  • Applications

    • 40GBASE-Ethernet

    • Infiniband QDR/DDR/SDR

    • 40G Datacom connections

Part Number Description
OLSQ851XL-CDS1 QSFP+ 10G SR L1 , 100M OM3 Digital Diagnostic Monitor
