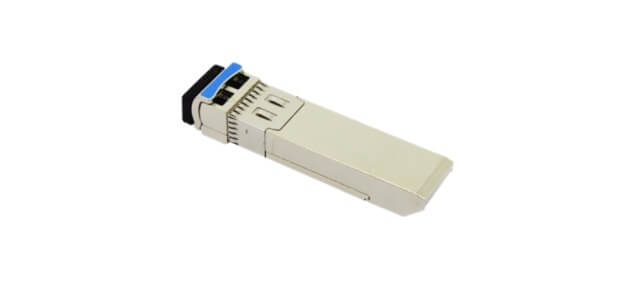

10G SFP+ 20Km 1310nm

首页 / 产品方案 / 10G SFP+ 20Km 1310nm
  • Product Features

    • Supports up to 11.3Gb/s bit rates

    • Duplex LC connector

    • Hot pluggable SFP+ footprint

    • Uncooled 1310nm DFB transmitter, PIN photo-detector

    • Applicable for 20km SMF connection

    • Low power consumption, < 1W

    • Digital Diagnostic Monitor Interface

    • Optical interface compliant to IEEE 802.3ae 10GBASE-LR

    • Electrical interface compliant to SFF-8431

    • Operating case temperature:

    Commerical:0 to 70 °C

    Industrial:-40 to 85 °C

  • Applications

    • 10GBASE-LR/LW at 10.3125Gbps

    • 10G Fiber Channel

    • Other optical links

Part Number Description
OLSP311XL-CD20 SFP+,up to 11.3Gb/s, 1310nm,20km, 0~70℃, with Digital Diagnostic Monitor
OLSP311XL-ID20 SFP+,up to 11.3Gb/s, 1310nm, 20km, -40~80℃, with Digital Diagnostic Monitor
